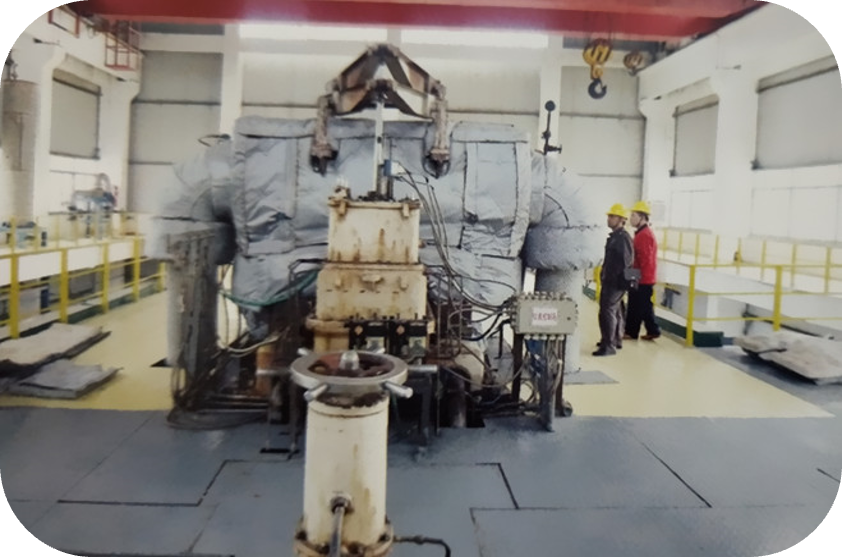

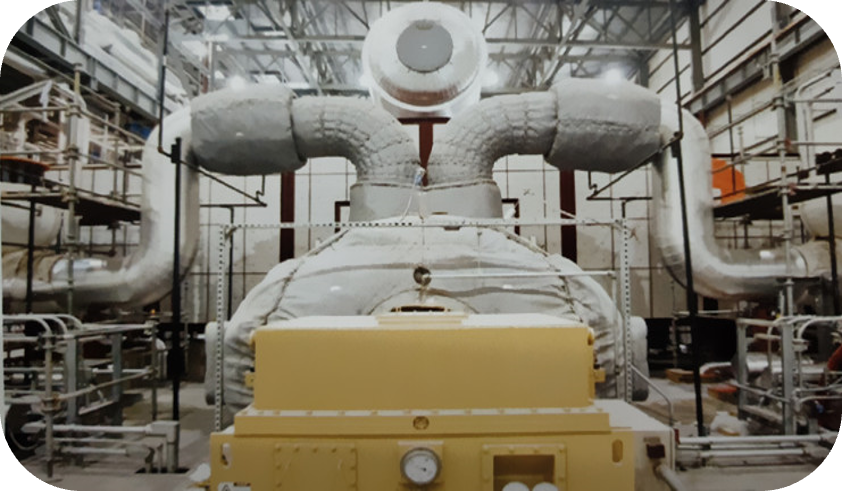

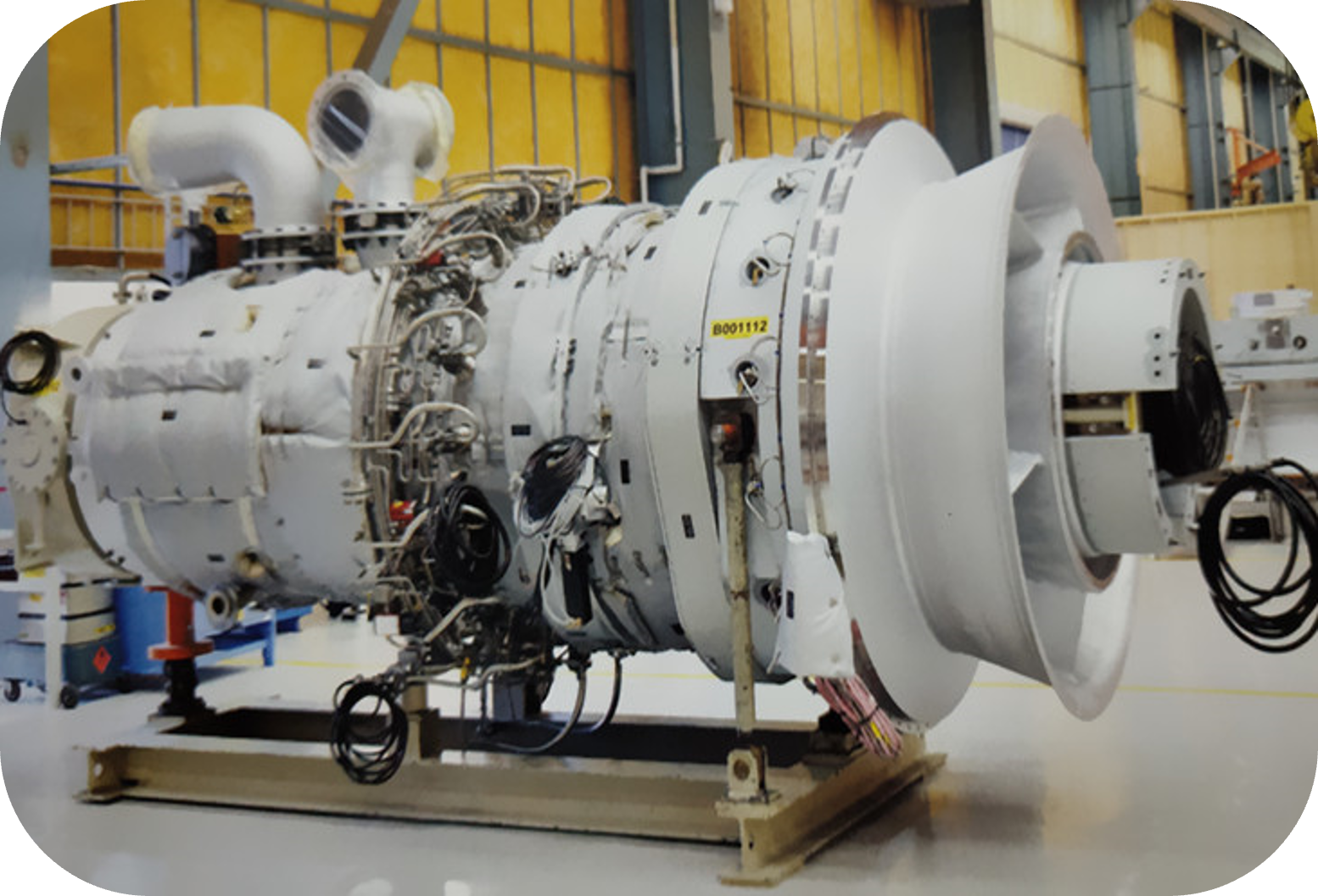

The detachable steam turbine insulation cover is made of special fire - resistant insulation materials and consists of three layers: the inner layer, the middle insulation layer, and the outer layer. It can be reused, meeting the heat insulation requirements of high - temperature working bodies that need regular maintenance or overhaul, filling the domestic gap in this field. The middle insulation layer selects different materials for multi - layer optimized compounding according to the actual working conditions of the steam turbine to achieve the most reasonable insulation structure. The inner layer mainly meets the requirements of temperature resistance, wear resistance, acid - alkali corrosion resistance, and gas permeability according to the usage conditions. The outer layer mainly meets the requirements of acid - alkali resistance, aesthetics, and wear resistance according to the usage conditions.
The detachable insulation of the steam turbine is divided into three main parts:
01. Upper cylinder (detachable insulation layer 240mm )
02. Lower cylinder (fixed insulation layer 260mm)
03. Split - face flange (detachable insulation layer 260mm )
01. The head flange adopts a detachable insulation structure.
02. The insulation layer has a thickness of 240mm ( 80mm x3 layers of insulation blankets) and is a reusable and environmentally friendly insulation cover. It must be debugged and installed on - site according to the working conditions.
The detachable soft - body energy - saving insulation cover for the steam turbine adopts a detachable insulation structure, and the insulation layer has a thickness of 180mm (90mm x2 layers of insulation blankets) and is a reusable and environmentally friendly insulation cover.
The insulation layer materials are required as per the design:
* Carbon - silicon - aluminum composite soft material, ceramic fiber needle - punched blanket
* The inner layer uses high - silica - resistant cloth (can withstand 1200℃ and can be used for a long time at 950℃)
* The outer layer is made by dividing zones with silica - gel reflective cloth, steel outer shell, and making them in sections.
The detachable soft - body energy - saving insulation cover has twelve characteristics, ten performance indicators, six advantages, five categories, etc. For a detailed introduction, please check the product description for a professional introduction.
